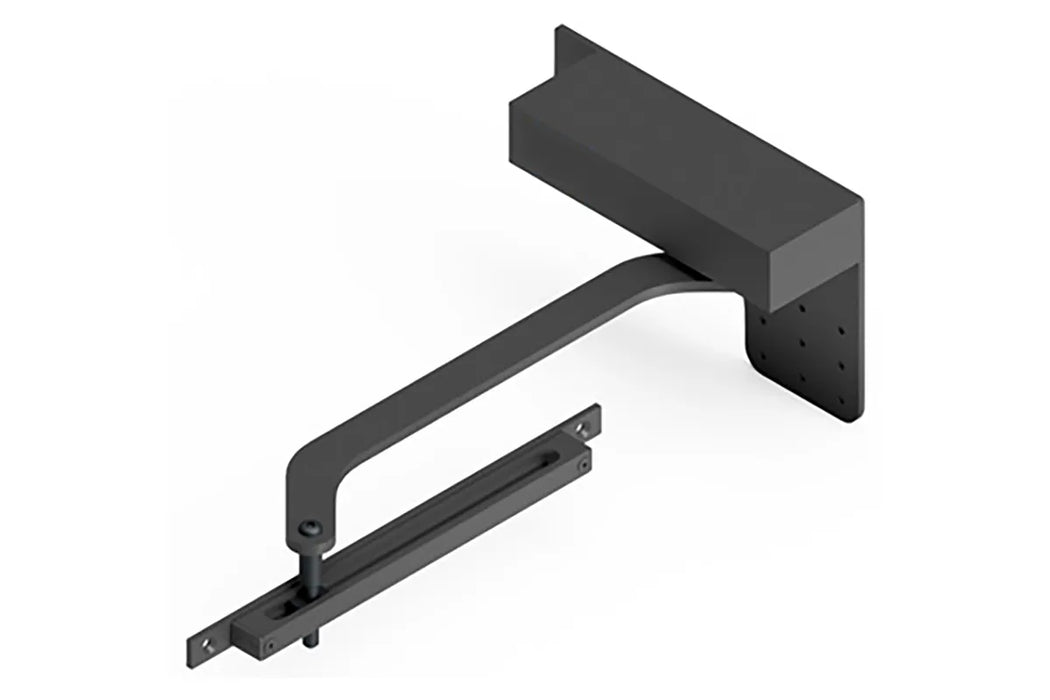

192 Cam Action Heavy Duty Hydraulic Gate Closer
Gate-closer operated by CAM technology, that is designed to ensure smooth operation and consistent performance, even in heavy-duty applications. Suitable for high-traffic access points thanks to the robust construction of the supplied accessories. Painted and treated to resist corrosion. Tested and patented in compliance with current European standards UNI-EN 1154:2003
- Main features:
• Cam technology ensures smooth passage and strong closing
• Separate adjustment valves for initial closing speed and final latching
• Thermostatic hydraulic oil for temperature stability from -18°C to +50°C
• Tested and patented according to UNI EN 1154:2003
• Compact design

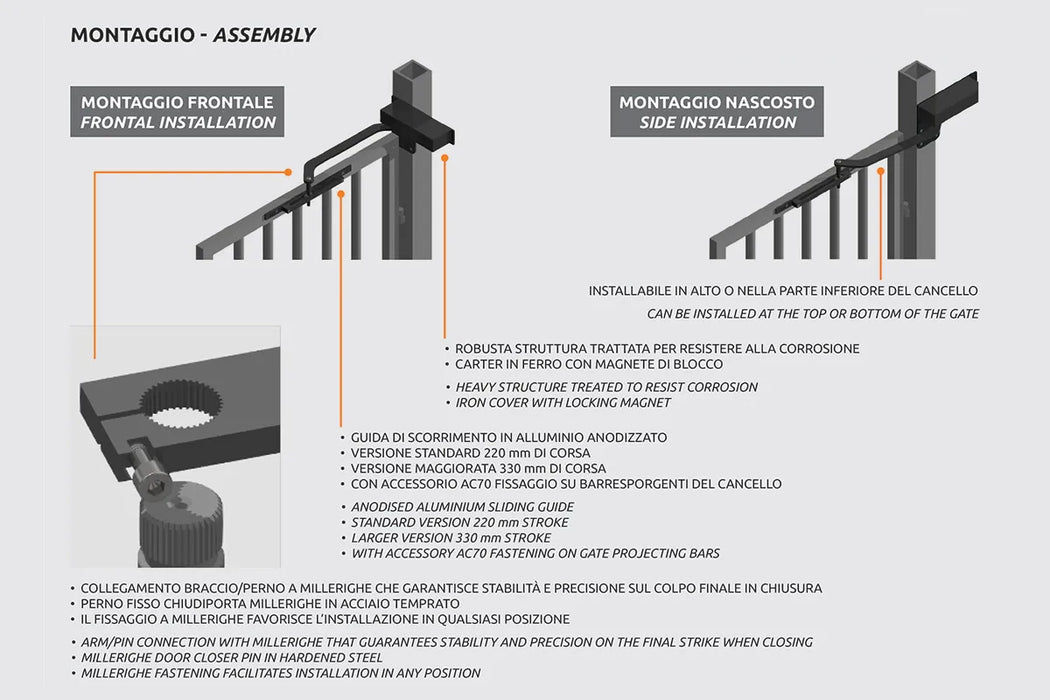

• Can be installed inside or outside the gate - Can be installed at 90 degrees or 180 degrees to the opening.
- Suitable for all pedestrian gates
Three Variants available :
- 192002N – force 2 – gates up to 1200 mm wide. x 2000mm High
- 192003N – force 3 – gates up to 1350 mm wide. x 2900mm High
- 192002PLUSN – force 3 PLUS – gates up to 1600 mm wide. x 2900mm High
The coupling between the arm and the splined shaft is secured by a horizontal clamping screw that eliminates any loosening caused by the stress of continuous opening and closing. The special composition of the thermostatic hydraulic oil maintains the original adjustment and is tested to ensure consistent closing times despite temperature variations. The initial closing speed and the final latch action can be adjusted by means of two separate valves.
Finish: Black Painted Steel
