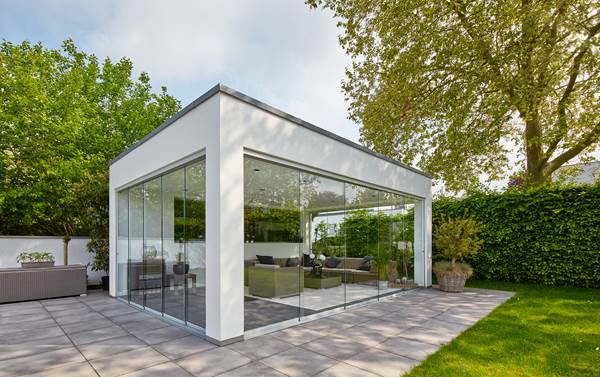

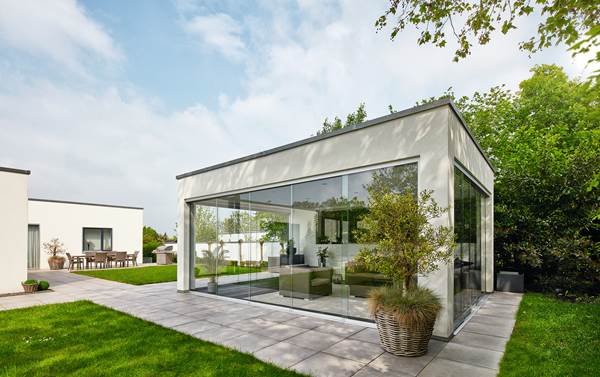

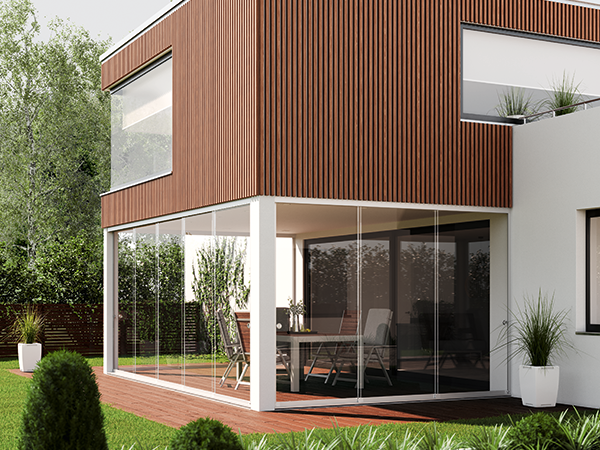

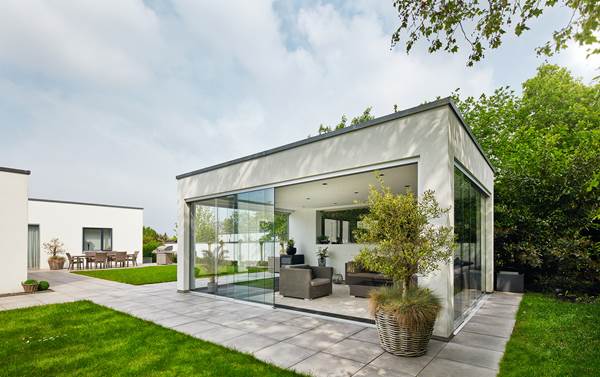

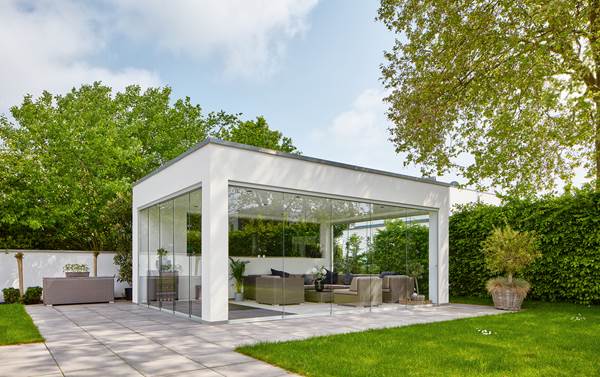

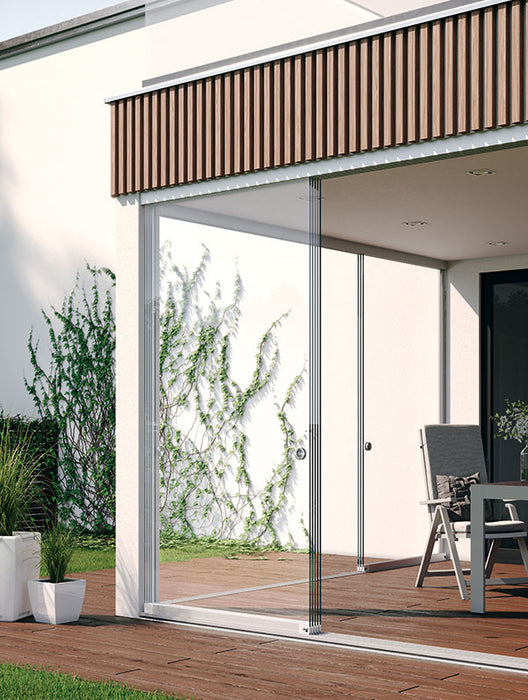

Atrivant 80 Frameless Glass Sliding Door System for Pergola Rooms

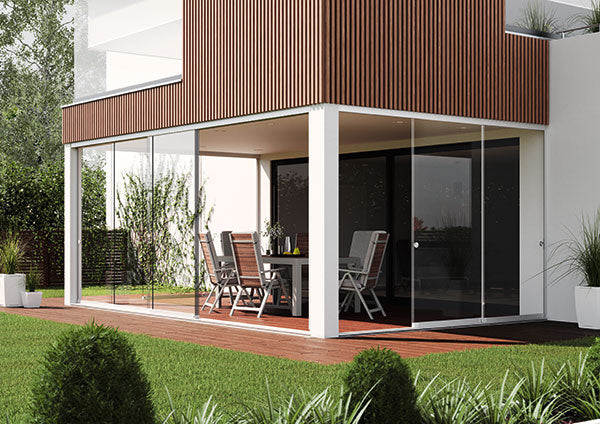

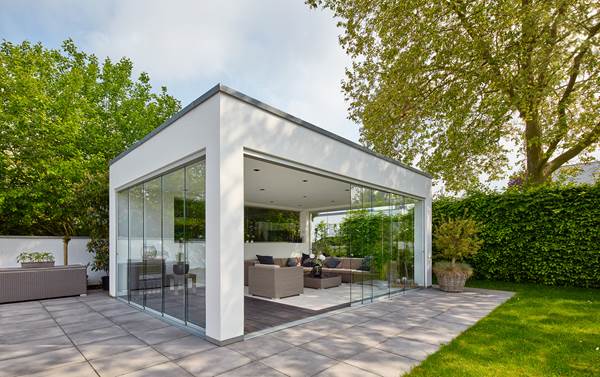

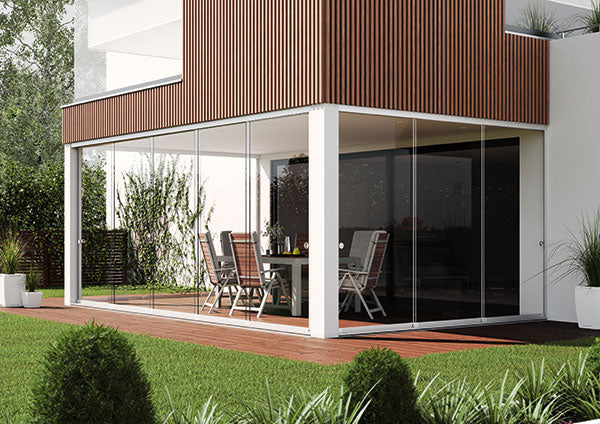

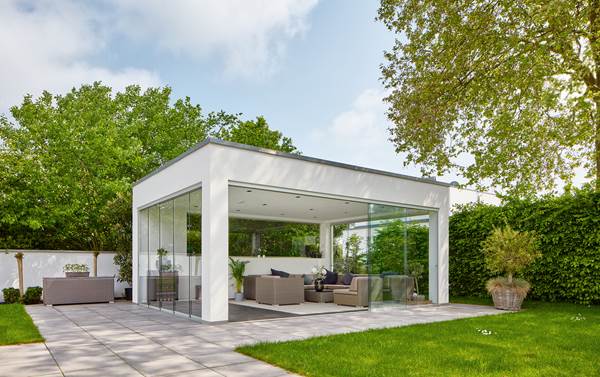

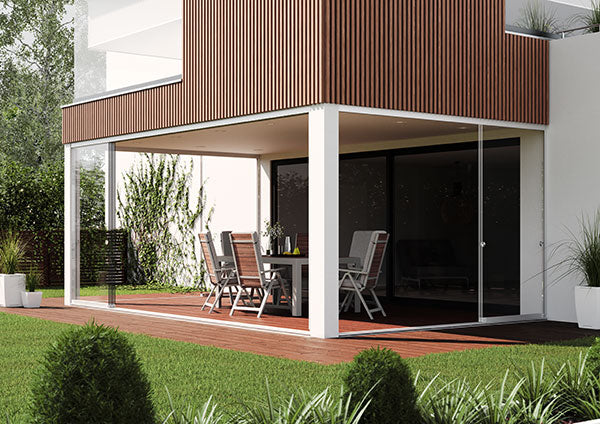

Atrivant 80 is an innovative sliding door system for frameless balcony and terrace glazing made of tempered glass - with cushioned sash movement and optional end-position cushioning.

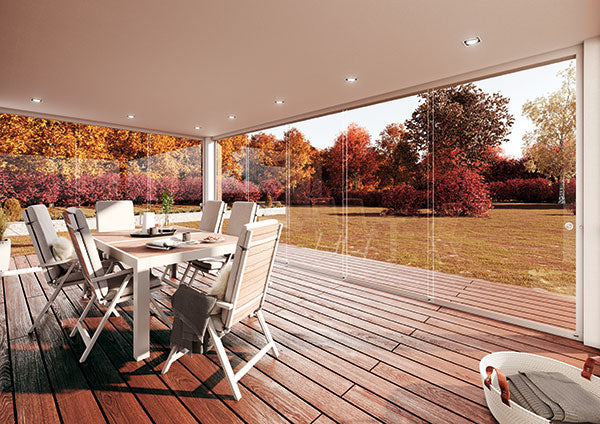

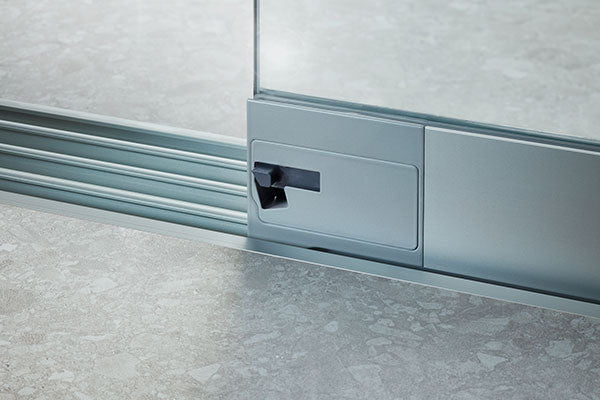

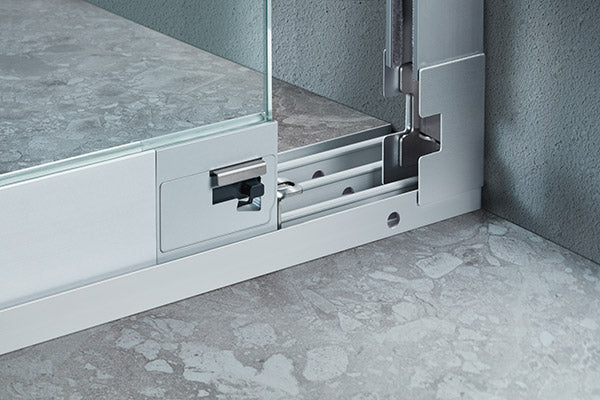

Atrivant 80 is a bottom-running fitting for parallel-sliding balcony and patio doors made of tempered glass, that lets you enjoy the patio season earlier in the year and for longer. When the sashes are closed, Atrivant 80 keeps out as much of the wind, rain and leaves as possible. An ingenious drainage profile ensures that water runs off well even in heavy downpours, and the interior remains largely dry.
Technical information
Atrivant 80
| Weight of the sashes | Up to 80 kg per sash |
| Glass width of the sashes | Minimum 610 mm Maximum 1500 mm The maximum height-width ratio of the sliding sashes is 3:1. |
| System height | Maximum 2500 mm* for outdoor applications Maximum 3205 mm for indoor applications |
| Glass thickness | System height of up to 1800 mm: 8 mm or 10 mm tempered glass System height ≥ 1800 mm: 10 mm tempered glass |
| Width of the overall system | Maximum 6000 mm with one-sided systems, maximum 12000 mm with two-sided systems |

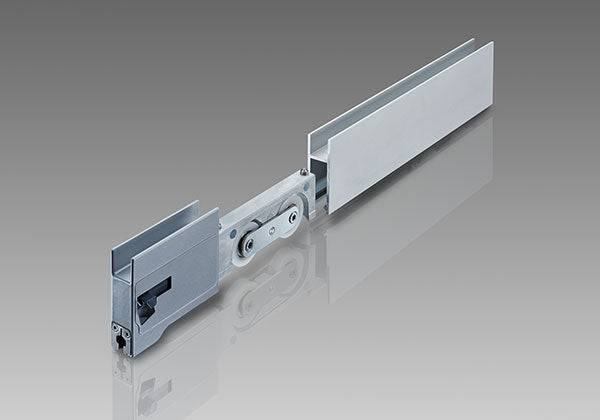

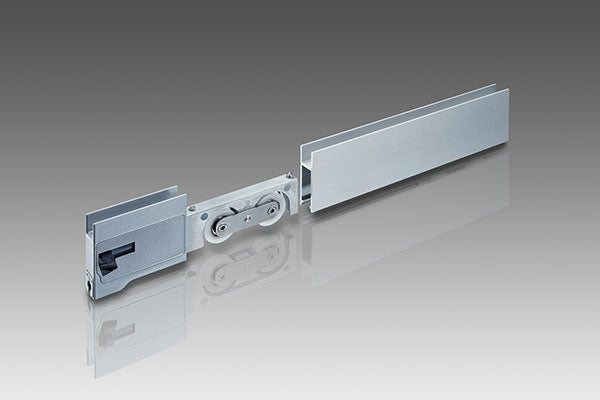

| Roller assemblies | Roller assemblies featuring high-quality, precise stainless steel ball bearings with plastic coating |
| Finish/execution | System with three, four or five tracks, with successive cushioned movement of the sliding sashes (Soft Catch) when opening and closing, featuring optional endposition cushioning and retraction on both sides of all sashes (Comfort Stop and Perfect Close), one-sided or two-sided, closing to left or right, available colours: EV1, anthracite (RAL 7016), white (RAL 9016) |
* Limited for compliance with Class 4 wind load according to EN12211/12210. Experts may permit greater installation heights in areas with less wind load (e.g. in sheltered locations on leeward side of building)
