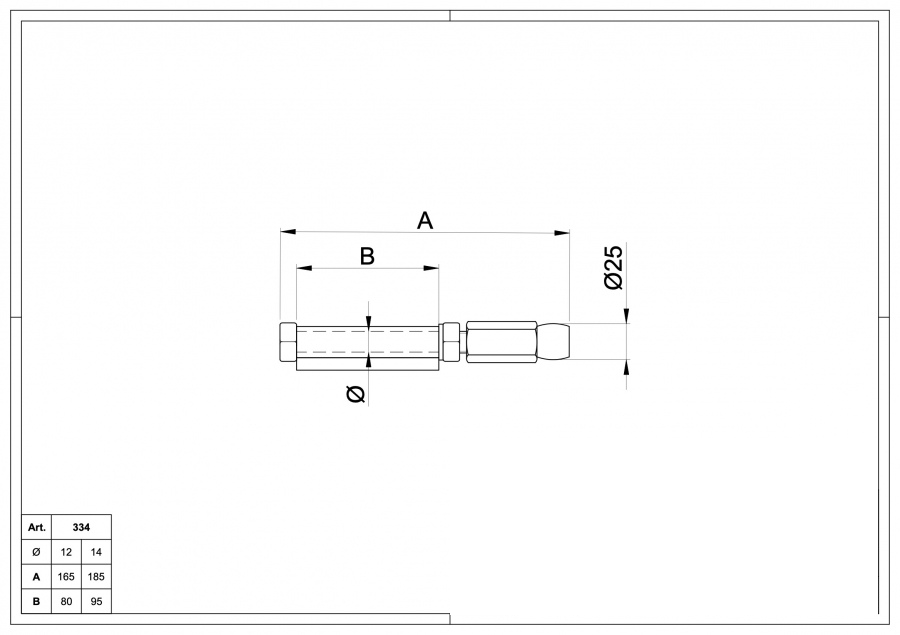

Bottom Guide with Hinge

Rotative 1 winged lower guide for hanging gates with brass sliding part.

Installed on multi-panel openings, thanks to their rotation, these trolleys allow the sliding of hanged gates and the folding of the hanged door.

The carrying capacity is intended for setups in which the track’s supports are at distance 700mm (maximum).

The installation is obtained by welding the central wing of the trolleys on the door leaf to be suspended. This trolley should be installed on the (lower) lateral part of multi-panel openings.







SKU metal-334
