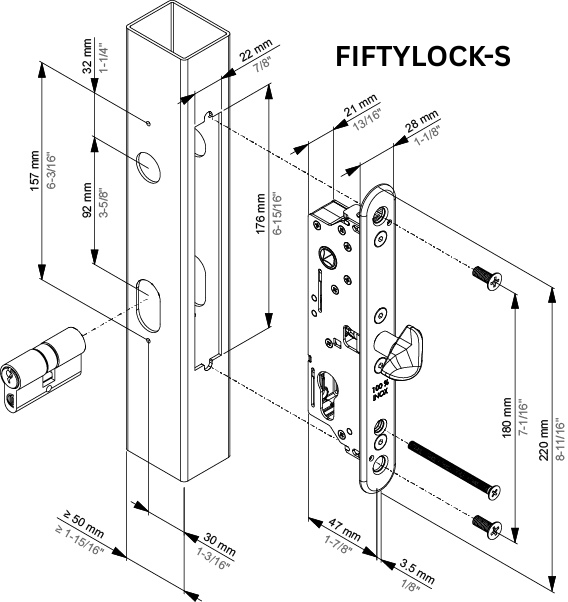

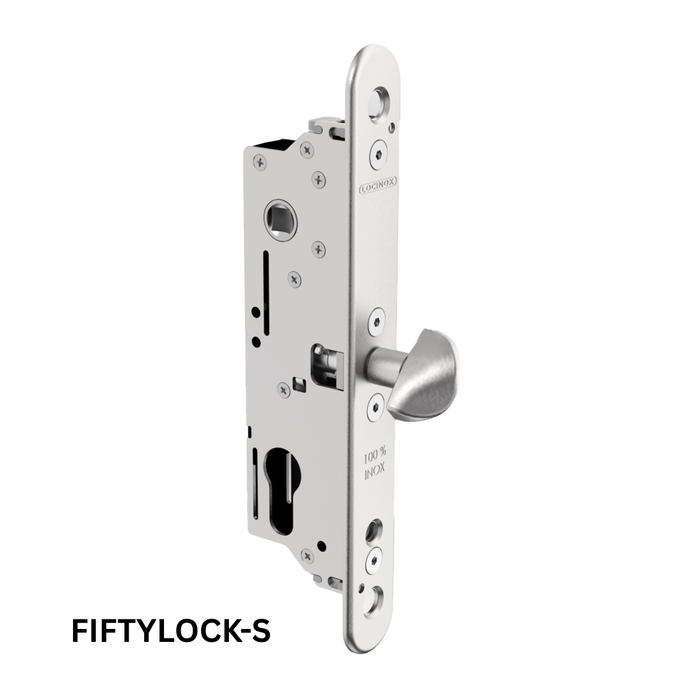

FIFTYLOCK-S - Sliding door / gate mortise lock (small Twistfinger) with 30 mm backset for sliding gates, compatible with the SFKS keep

FIFTYLOCK-S is a Mortise lock with a stainless steel mechanism and 30 mm backset, designed for sliding gates with profiles of at least 50 mm depth. The 33 mm high Twistfinger ensures optimal locking with the mortise SFKS keep. Thanks to the patented Click-It system, installation of the FIFTYLOCK-S and SFKS in a Uniwing cut-out is fast, solid and efficient. Suitable for steel, aluminium, wooden and PVC gates.

Specifications:

• Key-operated self-latching bolt
• Handles and cylinder to be ordered separately
• The center distance between the cylinder and the handle: 92 mm
• Compatible with Europrofile cylinder
• Mechanism and Twistfinger in stainless steel
• Stainless steel lock mechanism with cover plate against dirt penetration
• UNIWING-compatible
• 100% mechanical

Features:

• Centre distance between cylinder and handle = 92 mm
• Spindle = 8 mm
• For profiles =/> 50 mm
• Backset = 30 mm

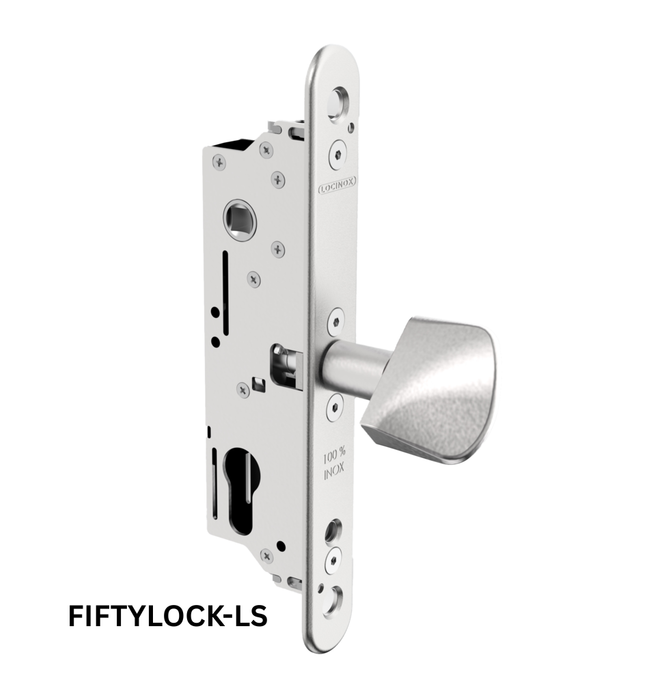

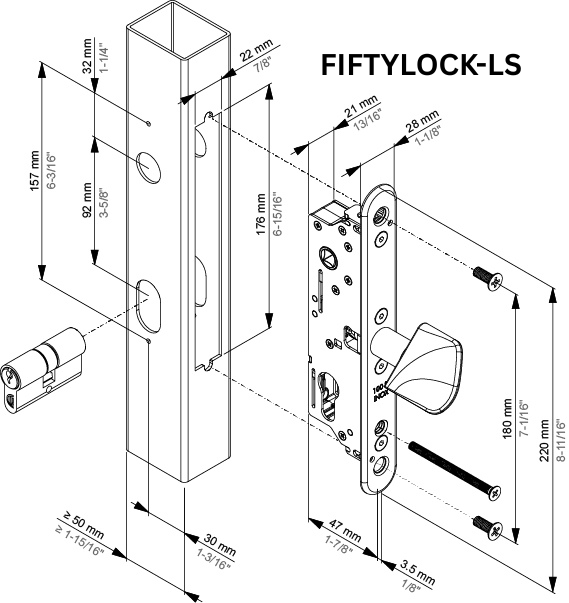

FIFTYLOCK-LS - Industrial mortise lock (large Twistfinger) with 30 mm backset for sliding gates, compatible with the SSKZ keep

Mortise lock with stainless steel mechanism and 30 mm backset, designed for sliding gates with profiles of at least 50 mm depth. The 45 mm high Twistfinger ensures optimal locking with the surface-mounted SSKZ keep. Thanks to the patented Click-It system, installation of the FIFTYLOCK-LS in a Uniwing cut-out is fast, solid and efficient. Suitable for steel, aluminium, wooden and PVC gates.

Specifications:

• Key-operated self-latching bolt
• Handles and cylinder to be ordered separately
• The center distance between the cylinder and the handle: 92 mm
• Compatible with Europrofile cylinder
• Mechanism and Twistfinger in stainless steel
• Stainless steel lock mechanism with cover plate against dirt penetration
• UNIWING-compatible
• 100% mechnical

Features:

• Centre distance between cylinder and handle = 92 mm
• Spindle = 8 mm
• For profiles =/> 50 mm
• Backset = 30 mm
