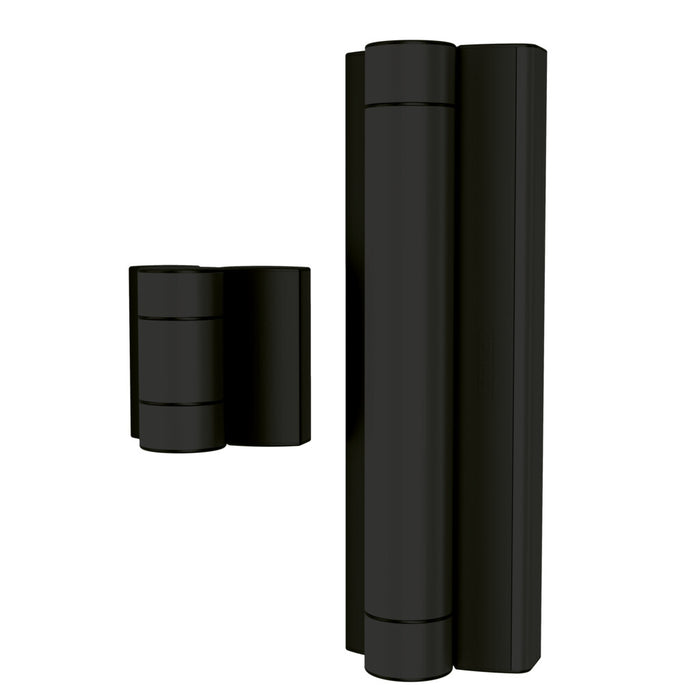

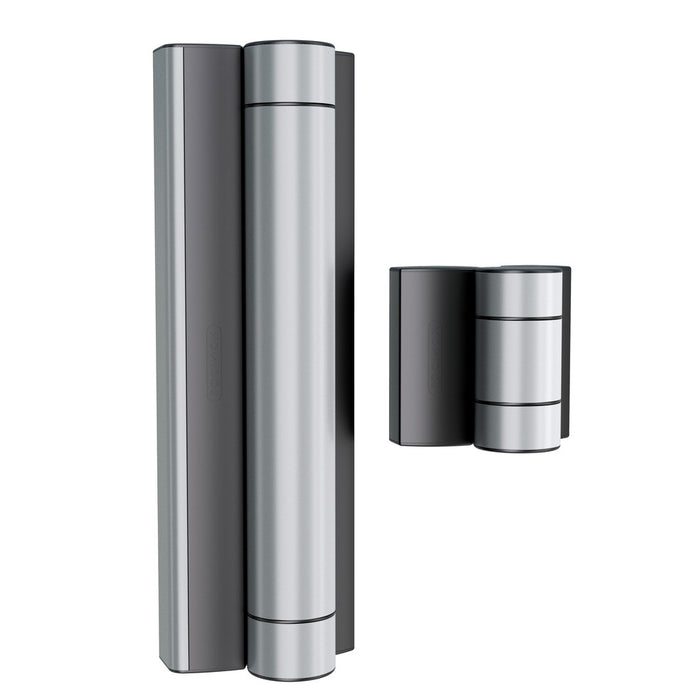

Magnus Two-In-One Motorised Hinge & Gate Closer For Pedestrian Gates

MAGNUS is a Two-In-One motorised gate closer and hinge, designed for the automation of pedestrian gates. The brushless and reversible motor is sensitive to unpredictable pedestrian behaviour, and operates in low-energy mode. The settings and access control can be configured via an intuitive app. Includes lower hinge and compact connection box.

Specifications:

• Motorised gate closer with integrated electronics
• 100 Nm torque

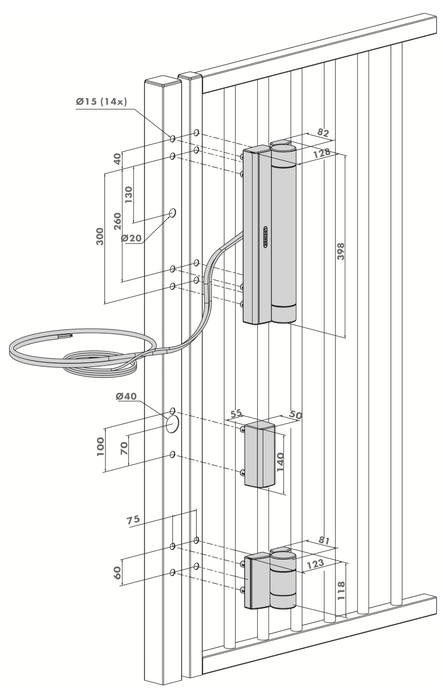

• Fits on post profiles from 60 mm and gate profiles from 40 mm
• Steel gear box
• Anodized aluminium cover
• Fast and easy fixing with Quick-Fix
• ETL-tested
• Input main power supply: 110 AC to 240V AC
• Motor voltage: 24V DC
• External connection box with 3 inputs and 3 outputs (Max. 48W, 24V DC)
• Automated obstacle detection with reverse function
• Brushless motor: long lifespan and intensive usage
• Reversible motor with back drivability for easy manual use - to be combined with a lock
• 2m cable between motor and connection module
• Compact and vandal-proof design
• Configuration via app
• Tested up to 500.000 cycles
• EN 16005 Compliant
