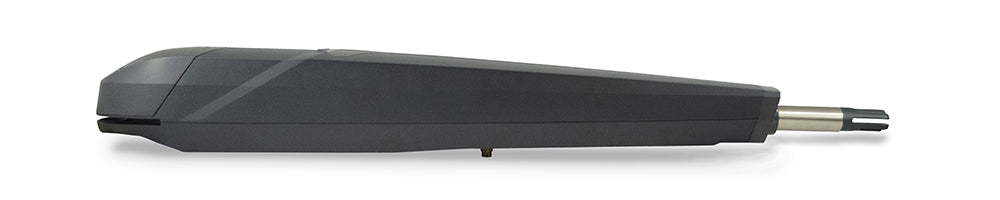

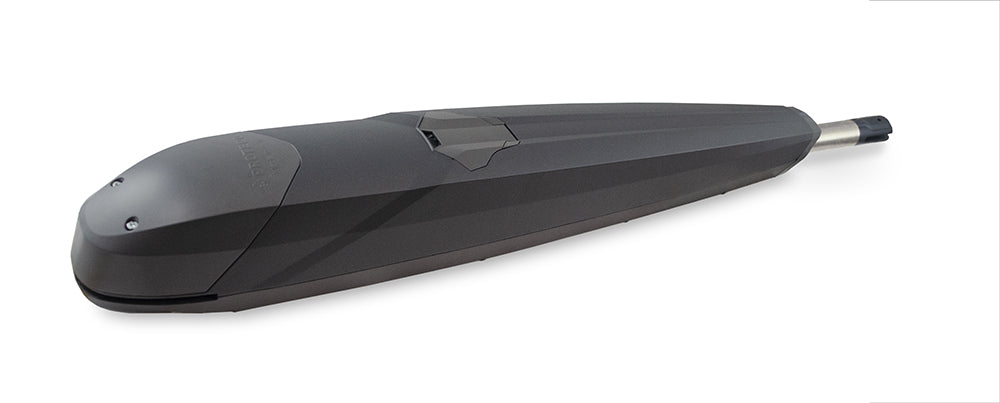

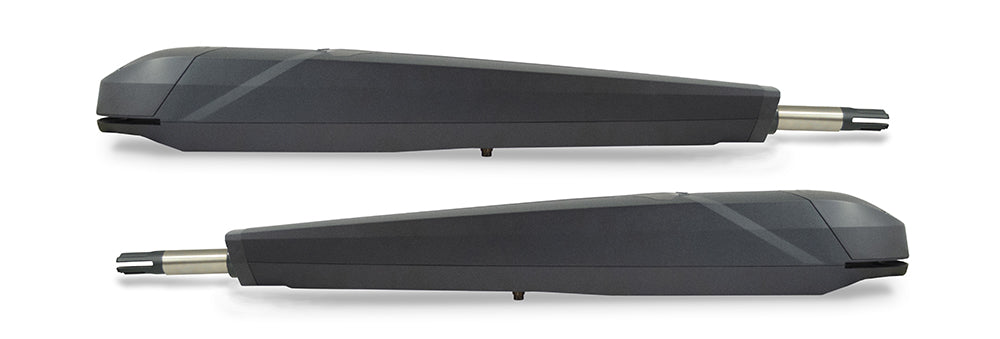

Rhino XL Telescopic Linear Actuator for Swing Gates
ADG Rhino XL Telescopic Linear Actuator for Swing Gates by Proteco is designed to be the ultimate solution for automating even the heaviest of Swing Gates with Leaves up to 5m long and 400Kg per leaf.
Rhino XL was designed for continuous, heavy-duty use in residential, multi-unit, and commercial complexes.
Its innovative telescopic movement ensures maximum adaptability in any installation setting, with fewer fixing constraints and a wide opening angle of up to 120°. Extremely versatile, RHINO XL is also perfect for deep pillars and can be installed on gates with hinge-to-edge distances of up to 20 cm.
Robust release system is conveniently located at the top of the motor Pre-wired capacitor on board the motor and a terminal block for power cable connections.
Available in both 230V and 24V versions
With the 24V version, you can connect a backup battery system to keep your automation running even in the event of a power outage, with a very high duty cycle of up to 80%..
-
The operator is designed for heavy, frequent use, such as car parks, commercial entrances, or busy residential estates.

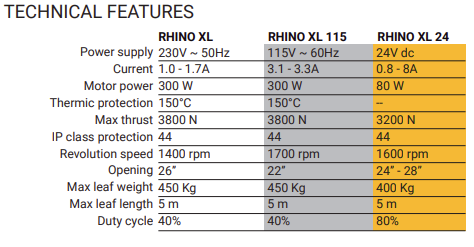

Technical Data:
| Characteristics | RHINO XL | RHINO XL 115 | RHINO XL 24 |
|---|---|---|---|
| Power supply | 230V ~ 50Hz | 115V ~ 60Hz | 24V dc |
| Current | 1.0 - 1.7A | 3.1 - 3.3A | 0.8 - 8A |
| Motor power | 300 W | 300 W | 80 W |
| Thermic protection | 150°C | 150°C | -- |
| Max thrust | 3800 N | 3800 N | 3200 N |
| IP class protection | 44 | 44 | 44 |
| Revolution speed | 1400 rpm | 1700 rpm | 1600 rpm |
| Opening | 26" | 22" | 24" - 28" |
| Max leaf weight | 450 Kg | 450 Kg | 400 Kg |
| Max leaf length | 5 m | 5 m | 5 m |
| Duty cycle | 40% | 40% | 80% |
