SLID 150

Up to 60kg, 90kg, or 150KG per leaf.

New Slid Option Soft Open Soft Close up to 150kg per leaf EN1527 tested 100000 times

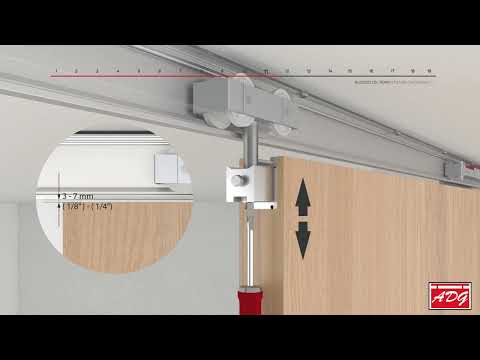

The Retrac system reduces the gap between the top of the door and the track. Retrac also allows adjustment of the height in the vertical plane even after installation

Applications include Pocket Doors - Floor to Ceiling Doors- In Hotels - Houses - Offices - Hospitals

Slid has been designed to separate rooms by wooden or metal
doors, optimizing clearance and providing a minimalist design, smooth running for years, on your high-finish sliding door.

The Slid track can be installed on view as a feature, wall mounted, ceiling mounted or Top track can be used and the track can be installed flush with the ceiling.


REF DESCRIPTION QTY
2731 Wall Braket Option 500mm 10
2813 Slid-150 Track 3m 1
2809 Slid-150 Soft Open Soft Close 1
06730 Oval Flush Handle 2
06636 Ring Pull 1
  Option for ceiling fix Take off 2731 and 2813
2836 Top-Track 6m 0.5



More Info

Ideal for partitioning kitchens, lounges, bathrooms, bedrooms, offices, etc.

Compact system for minimalist design.

Cleared passageway with no floor profile.

Minimum gap between door and profile.

Choice of exposed, recessed or pocket application.

Choice of conventional horizontal hold system with aluminium
gallery or vertical hold system with built-in fittings (Retrac).

“Silver” anodized aluminium profile (AA10 ISO 7599, 10 microns).
(Slid 60, 90, 150) or natural (Slid 150).

Holds doors up to 150 Kg.

Friction bearing system (Slid 60, 90) or bearing system
(Slid 150) for smooth opening.

Stopper-brake for optimum closing.

Wall, ceiling or dropped ceiling installation.

Systems tested up to 100.000 cycles as per standard EN1527.

Example BOM for single leaf up to 150CM W MAX 150KG.

Specifications
“Silver” anodized aluminium profile (AA10 ISO 7599, 10 microns).
(Slid 60, 90, 150) or natural (Slid 150).

Holds doors up to 150 Kg.

Friction bearing system (Slid 60, 90) or bearing system
(Slid 150) for smooth opening.

Stopper-brake for optimum closing.

Wall, ceiling or dropped ceiling installation.

Systems tested up to 100.000 cycles as per standard EN152

SKU slid-150
